Description

COOL SURROUND 360°

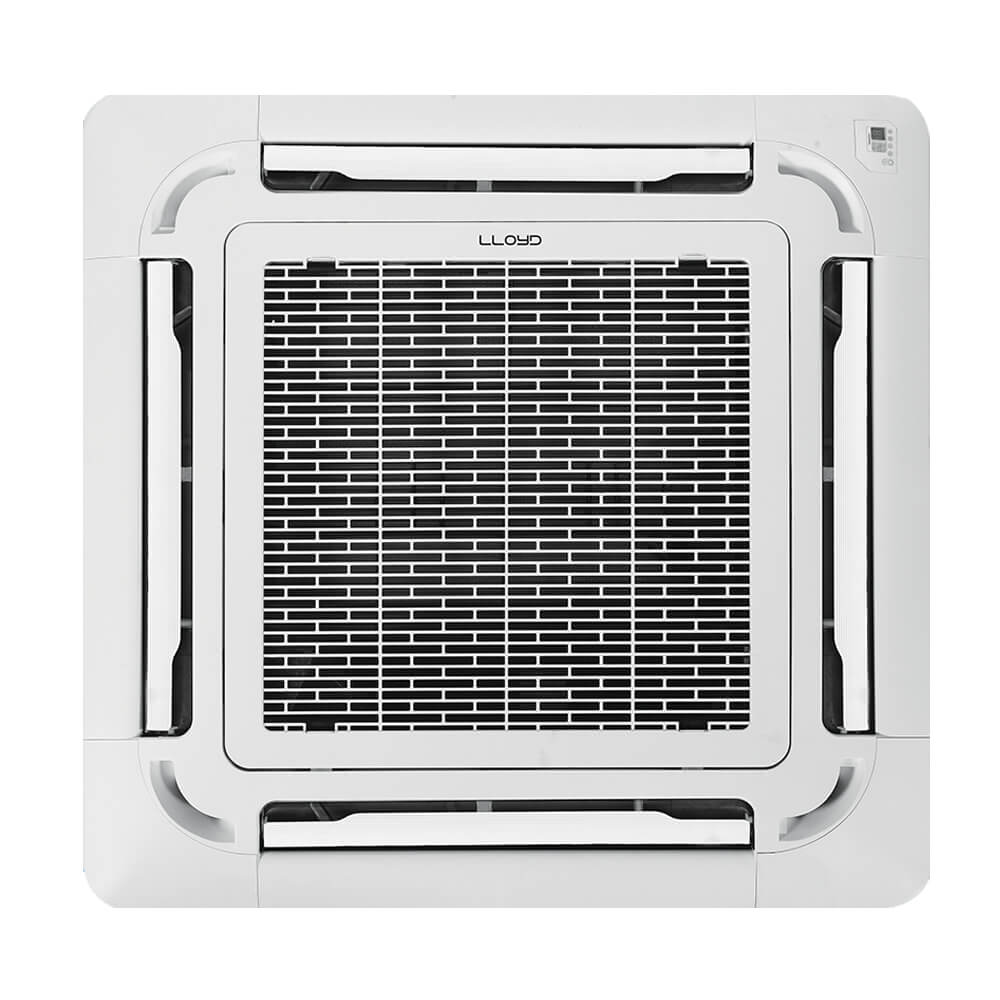

The Cassette air flow design allows cool air to diffuse and sink evenly, offering uniform cooling expirience throughout the space.

FLEXI WIND CONTROL

The 4 air outlets can be independently controlled for customized comfort.

FRESH AIR

Fresh air from outside can be led into the room through a connection pipe, which keeps the indoor air fresh and healthy.

HIGHLIGHTS

Refrigerant	R-32
Comp. Type	ROTARY

ELECTRIC DATA

Electrical Consumption (kWh)	2786.78 kWh
Input current (Ampere)	5.21 A
Power Supply (V / Hz / Phase )	380 V – 415 V / 3 Phase / 50 Hz

PERFORMANCE

ODU Noise (dB)	63 dB
IDU Noise (dB)	45 dB
Air Flow (m³/h)	1650 m³/h
Input Power (W)	3600 W
Cooling Capacity (W)	10551 W

WEIGHT & MEASUREMENT

ODU Net / Gross Weight (kg)	66.1 kg / 71.0 kg
ODU Dimension (L×W×H) in cm	94.6 cm x 41 cm x 81 cm
IDU Net / Gross Weight (kg)	25.8 kg / 29.9 kg
IDU Dimension (L×W×H) in cm	83 cm x 83 cm x 24.5 cm
