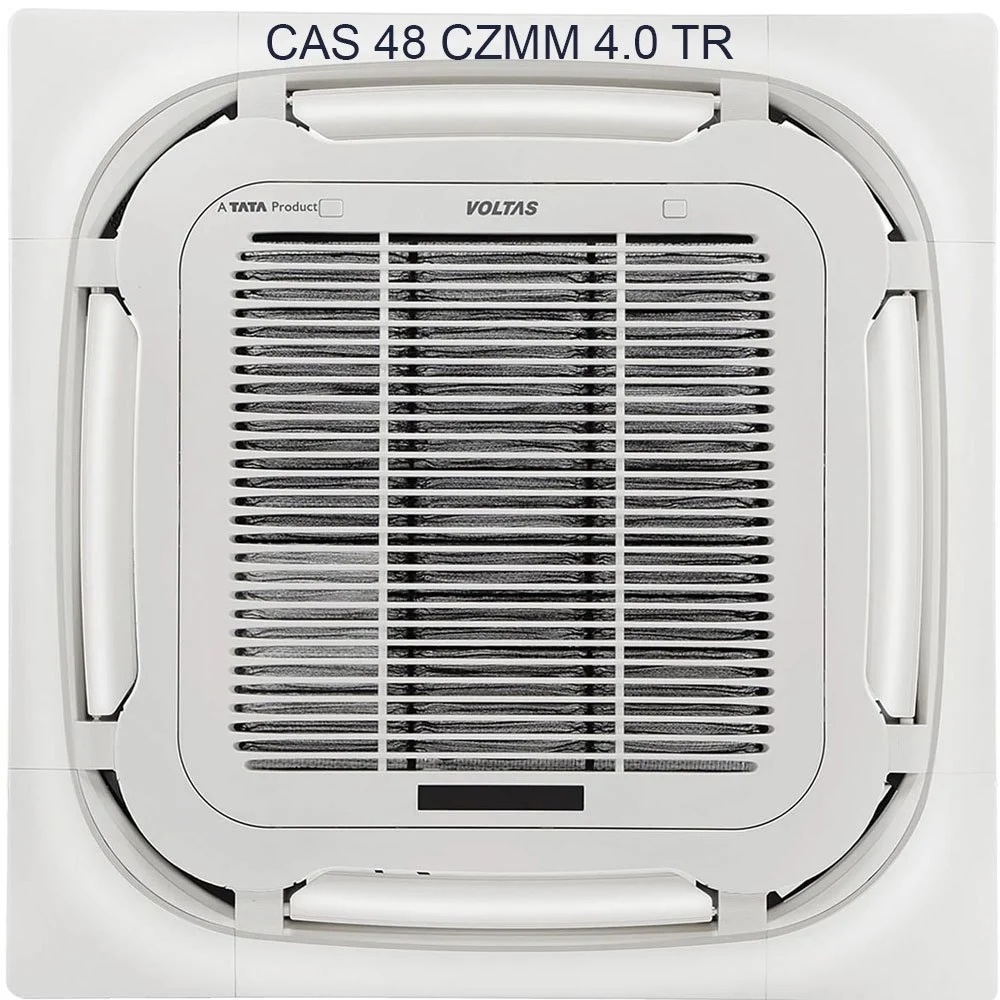

VOLTAS FIXED SPEED CASSETTE AC

VOLTAS FIXED SPEED CASSETTE AC

Presenting the new Cassette Air Conditioners from Voltas with a unique 8 way air flow grill design which provides uniform cooling across the room with no hot spots. Additionally, it is powered with an Insta-Cool Compressor which gives instant cooling and more savings.

Description

INSTA COOL COMPRESSOR

Gives you instant cooling at even 500c in sweltering summers and helps you save more.

FRESH AIR INTAKE

Unique four-sided interface to connect with duct in another room which helps more fresh air intake in the room.

SILENT OPERATION

Cools silently at 36dB(A)*

HYDROPHILIC BLUE FIN EVAPORATOR

Reduces accumulation of dust & micro organisms on evaporator coil by not allowing water to accumulate.

COLD CATALYST FILTER*

Absorbs small particles to give you fresh air.

8 WAY AIR FLOW GRILL DESIGN*

Unique grill design to ensure uniform cooling in the room.

TECHNICAL SPECIFICATION OF FIXED SPEED CASSETTE AC

Description Of Details Units 1.5 TON CASSETTE TYPE 2.0 TON CASSETTE TYPE 3.0 TON CASSETTE TYPE 4.0 TON CASSETTE TYPE
Rated Capacity Actual Tonnage Units Voltas Voltas Voltas Voltas
Star Rating BEE Only 2 2 NA NA
ISEER As per BEE 3.35 3.35
Cooling Capacity Btu/Hr. Watts/Hr 18000 24000 36000 48000
Power Consumption Watts/Hr 1576 1940 3770 4870
Amps/Hr 6.9 8.5 6.76 8.88
Power Supply Phase 1 1 3 3
IDU Motor DC/AC AC AC AC AC
CFM – P.Hr H/L/M/Q 765/535/612 765/535/612 1059/741/847 1176/941/1059
IDU Dimensions
Height MM 250 250 250 290
Width MM 840 840 835 835
Weight Kg 25 25 27.5 26.5
Anti Corrosion Coil Y/N Yes Yes Yes Yes
Compressor Details
Compressor Type Rotary/Scroll Rotary Rotary Twin Rotary Twin Rotary
Compressors Nos. 1 1 1 1
Refrigerant Type Name of Refrigerant R32 R32 R410A R410A
ODU Details
ODU Motor & Nos. DC/AC & Nos. 1 1
Height MM 600 600 803 1366
Width MM 870 870 970 940
Depth MM 355 355 395 368
Weight Kg 41 41 68 98
Anti Corrosion Coil Y/N Yes Yes Yes Yes
